PC10-109X Series

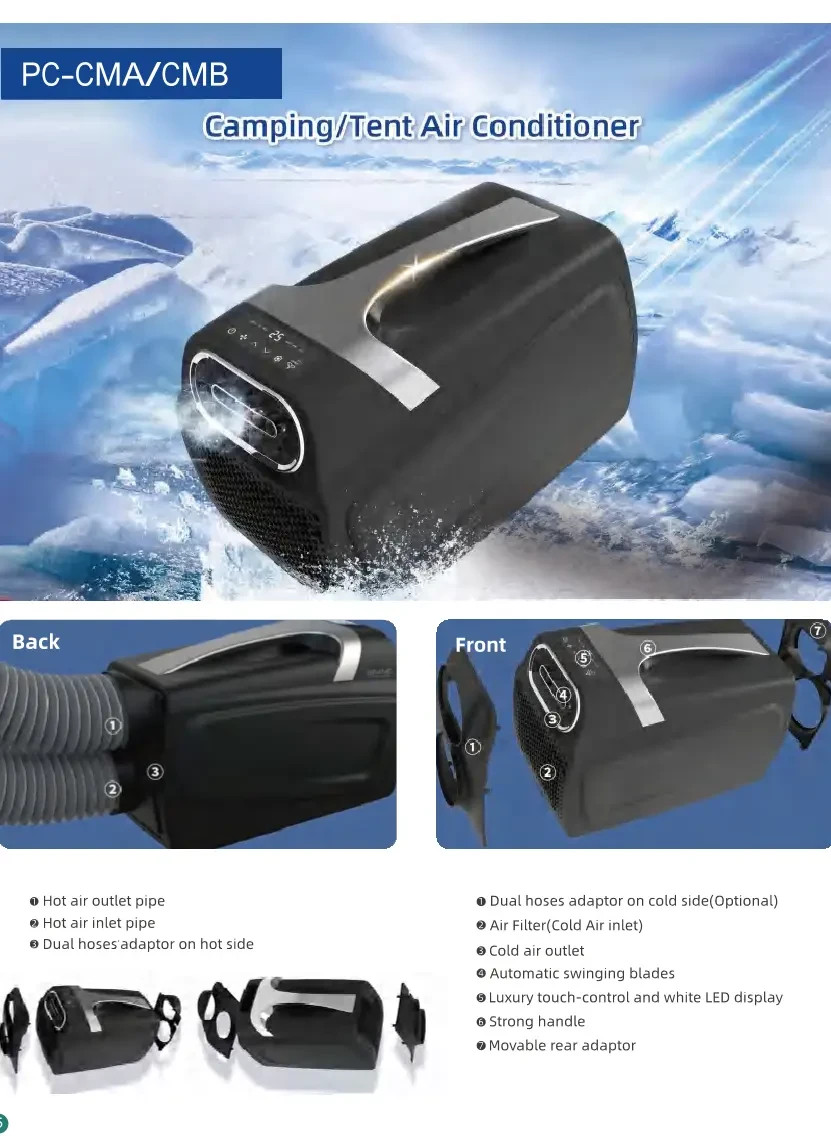

Dual hoses in front for spot cooling of tents and small rooms
Available models · 1
- Cooling Capacity
- 3000 BTU/390 W
- Air Flow
- 150 m³/h
- Noise Level
- ≤45 dB(A)
Specification matrix
Values are listed per model in the PC10-109X platform. Scroll horizontally to compare models.
| Parameter | FDP09-109X |
|---|---|
| Voltage/Frequency | 220-240V/50Hz |
| Cooling Capacity | 3000 BTU/390 W |
| Power Input (Cooling) | 340 W |
| Humidity Extraction | 0.3 L/h |
| Air Volume | 150 m³/h |
| Noise Level | ≤45 dB(A) |
| Refrigerant | R290 |
| Product Meas. | 270×270×530 mm |
| Package Meas. | 320×320×810 mm |
| Loading Qty. (pcs) | 20FCL: 252, 40FCL: 518, 40HQFCL: 768 |
| N.W. | 14.5 kg |
| G.W. | 16.5 kg |
Values follow the current product catalogue and can be adjusted to the destination market. Final figures are confirmed on the proforma invoice.
Packing & loading reference
One row per model in the PC10-109X platform, so you can plan cartons, weights and container loading before you confirm a shipment.
| Model | Product size | Carton size | Net weight | Gross weight | Qty / 20'GP | Qty / 40'GP | Qty / 40'HQ |
|---|---|---|---|---|---|---|---|
| FDP09-109X | 270×270×530 mm | 320×320×810 mm | 14.5 kg | 16.5 kg | 252 | 518 | 768 |
Container quantities are quoted as pieces per container based on the standard carton. Mixed-model loading and palletised shipping are recalculated on the proforma invoice.
Design & key features
PC10-109X Series is a portable air conditioning platform covering one model (FDP09-109X). Cooling capacity spans 3000 BTU/390 W. Design highlights include dual hoses in front for spot cooling of tents and small rooms; 3,000 btu/h cooling capacity with 340 w power consumption; environmentally friendly r290 refrigerant.
- Dual hoses in front for spot cooling of tents and small rooms
- 3,000 BTU/h cooling capacity with 340 W power consumption
- Environmentally friendly R290 refrigerant
- 3-in-1: air conditioner, fan and dehumidifier
- 2-speed control from panel or remote control
- High energy efficiency, EER: A class
- Horizontal swing louvers for enhanced cooling performance
- Virtually no installation necessary
- Up to 24 hours programmable timer
- Self-diagnose capability and water-full safety alarm
- Easy to move around on rolling casters
- Digital control panel
- Extendable exhaust hose up to 1.5 meters
Request pricing for PC10-109X
Tell us the model you need, the quantity, plug type, certification and destination port. Our export team replies with pricing, MOQ and lead time within one business day.
